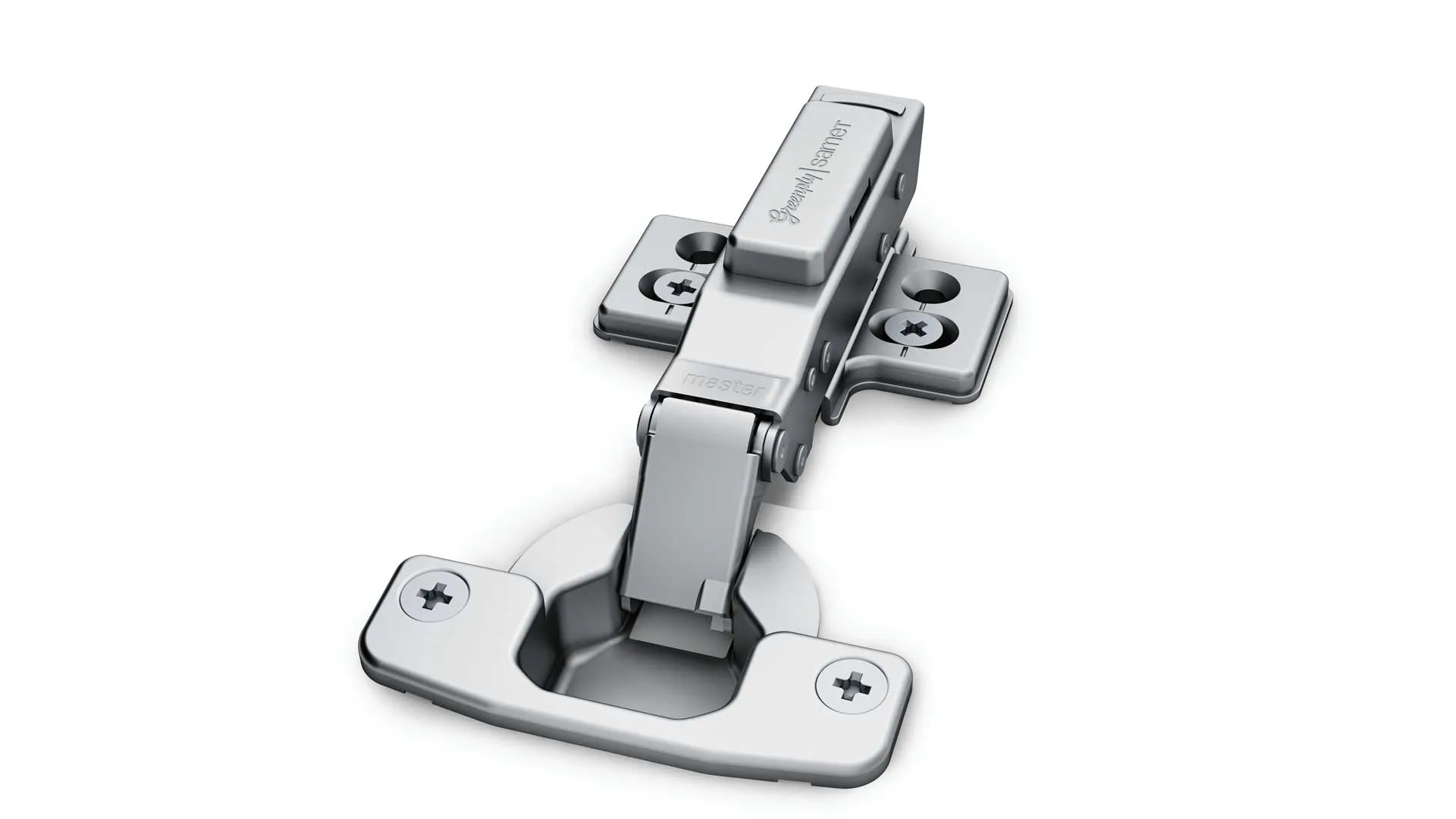

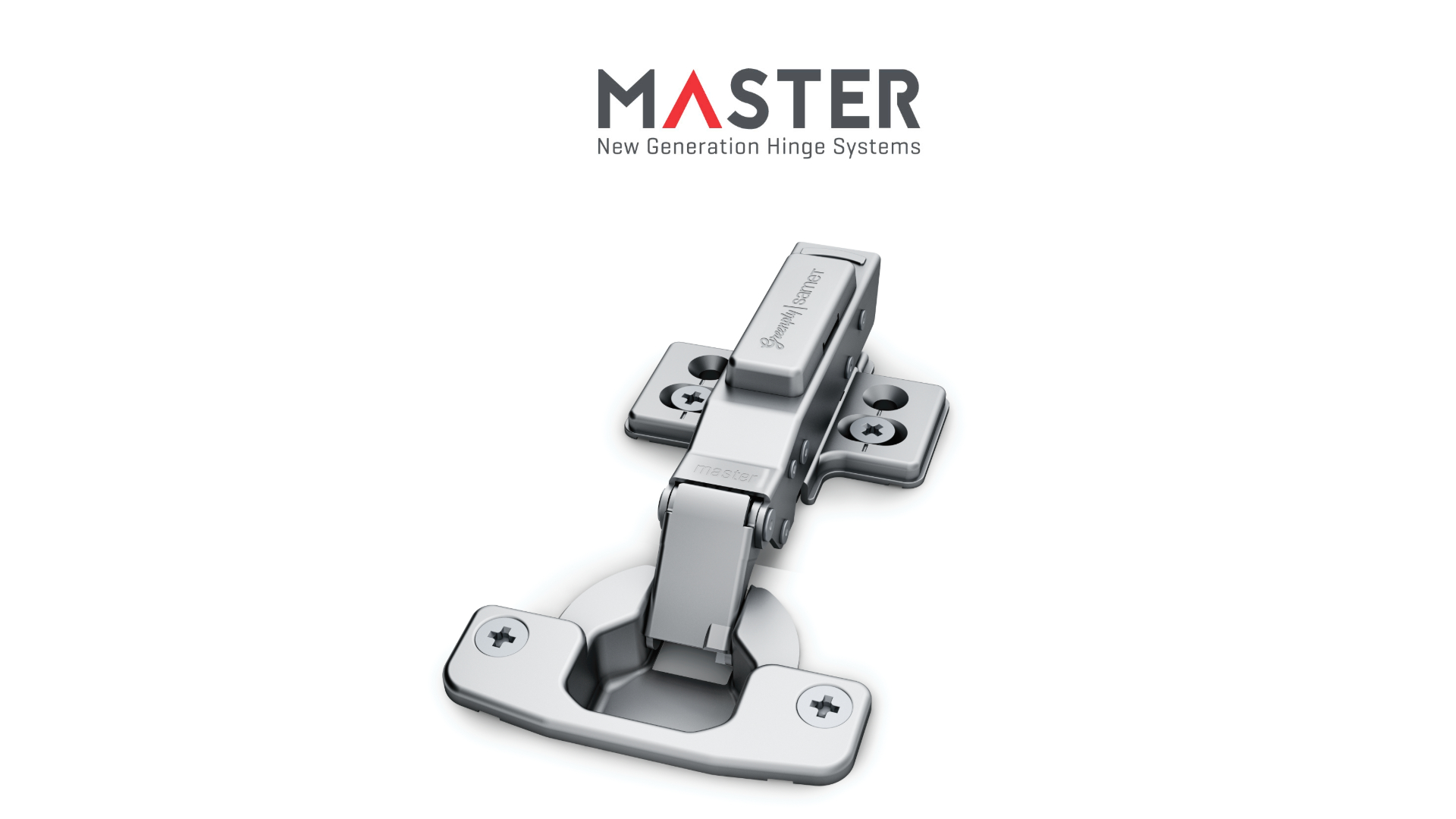

Master Soft Close Hinge
Elegant Design
The Master hinge boasts a pure and aesthetic design, crafted from superior materials for an unmatched steel hardware experience. With its wide product range and , it seamlessly complements various cabinet designs, ensuring a perfect fit for any style preference.
High Quality
Master Soft-Close Hinge Series were designed with the advanced technology of SAMET R&D Center and produced by using fully - automated robotic production systems.

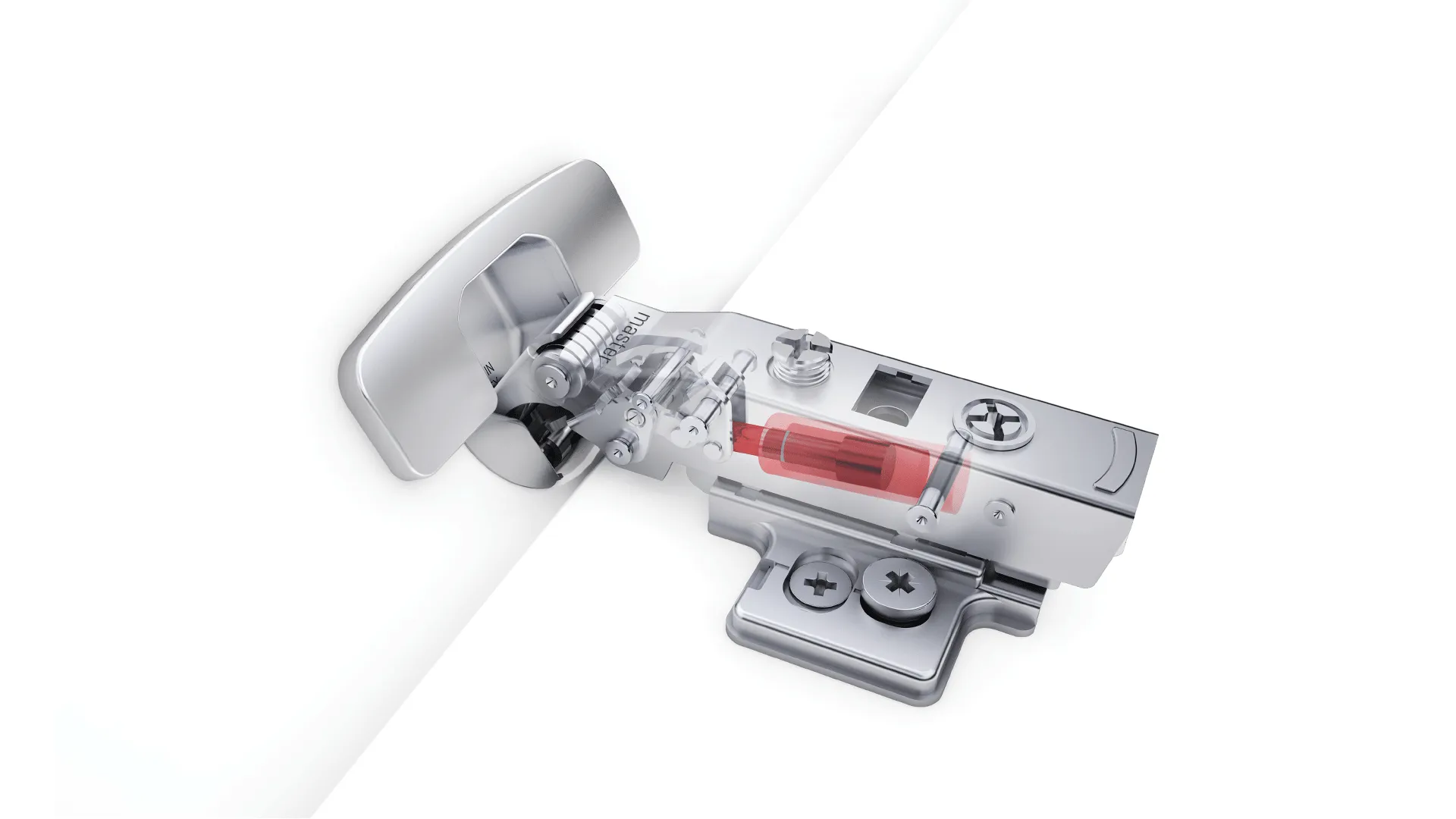

Integrated Soft-Close System
The Master hinge's integrated soft-close system offers excellent silent movement and smooth operation, ensuring LGA certificated superior performance and adding top level comfort to daily life.

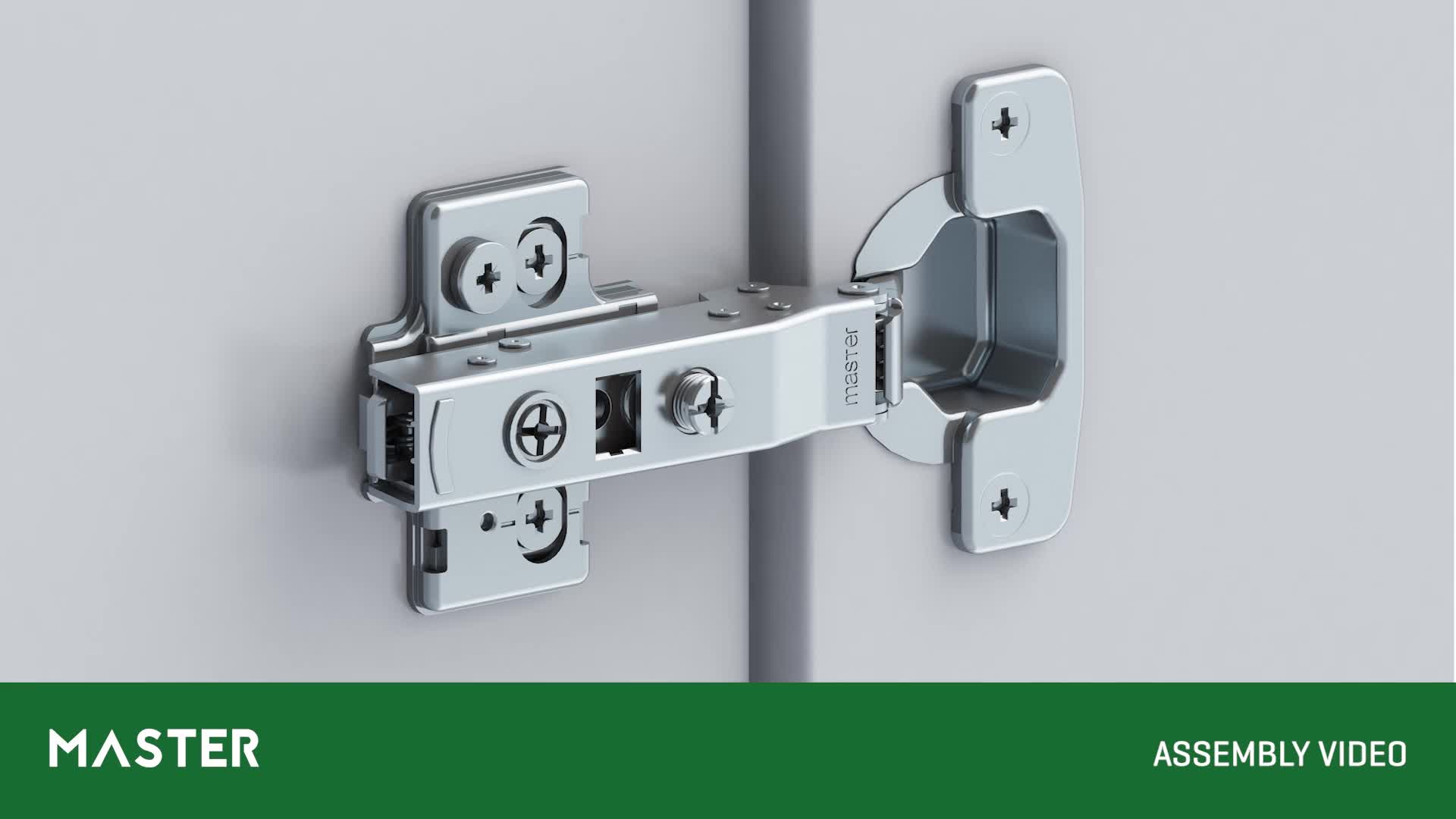

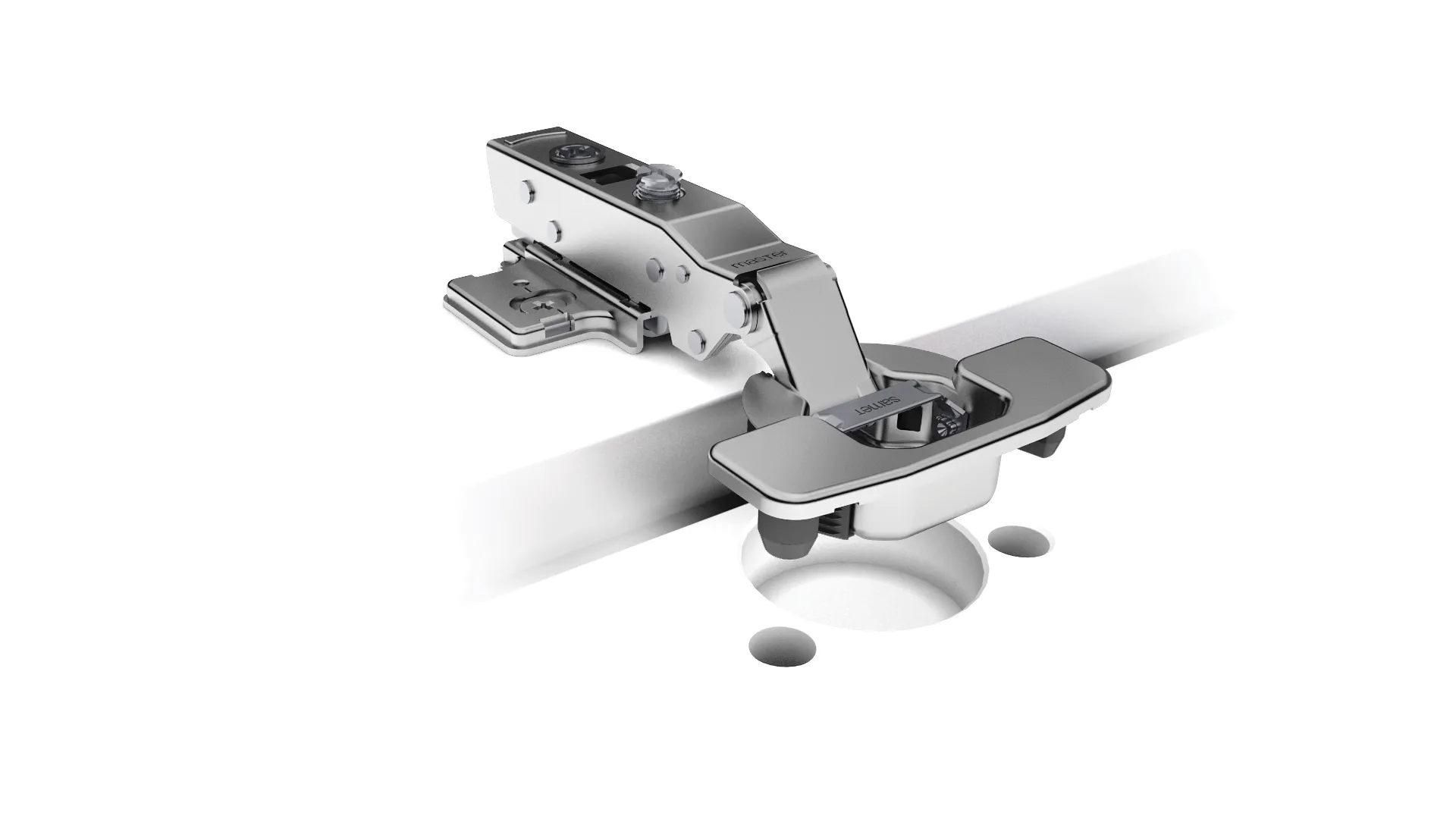

Easy Installation
Track Mechanism in Master Soft-Close Hinge provides toolless assembly-disassembly feature, which also simplifies installation process and help to save time.
Advanced 3D Adjustment
Wide range 3D adjustment in six direction ensures assembly comfort and better precision for furnitures.
What is the side adjustment tolerance for the Master Hinge model?
+6 / - 1 mm
What is the depth adjustment tolerance for the Master Hinge model?
+3 / - 2 mm
Do you have a hinge model with screwless mounting feature when mounting the hinge cup on the cabinet doors?
Yes, there is. Master Toolless hinge model.
What is the soft-close mechanism material in your Master model?
It has Metal a soft-close mechanism. This soft-close mechanism, of metallic construction, fits elegantly within the body of the component to complete the aesthetic appearance of the hinge
Which mounting plate models can we use with your Master Model?
Adjustable, 4 holes, 2 holes and horizontal mounting plate models.
How many mm of door thickness can we use for your Master Hinge model?
We can use it for a min. 16 max. 26 mm door thickness.
What is your Cup dimensions for Master Hinge model?
Cup depth must be min. 12,5 mm and cup the diameter is 35 mm.
What is the opening angle for Master hinge model?
It is 110°
Do we use Master hinge model for Face-Frame cabinets?
Yes, we can use it with Face-Frame Mounting Plate.

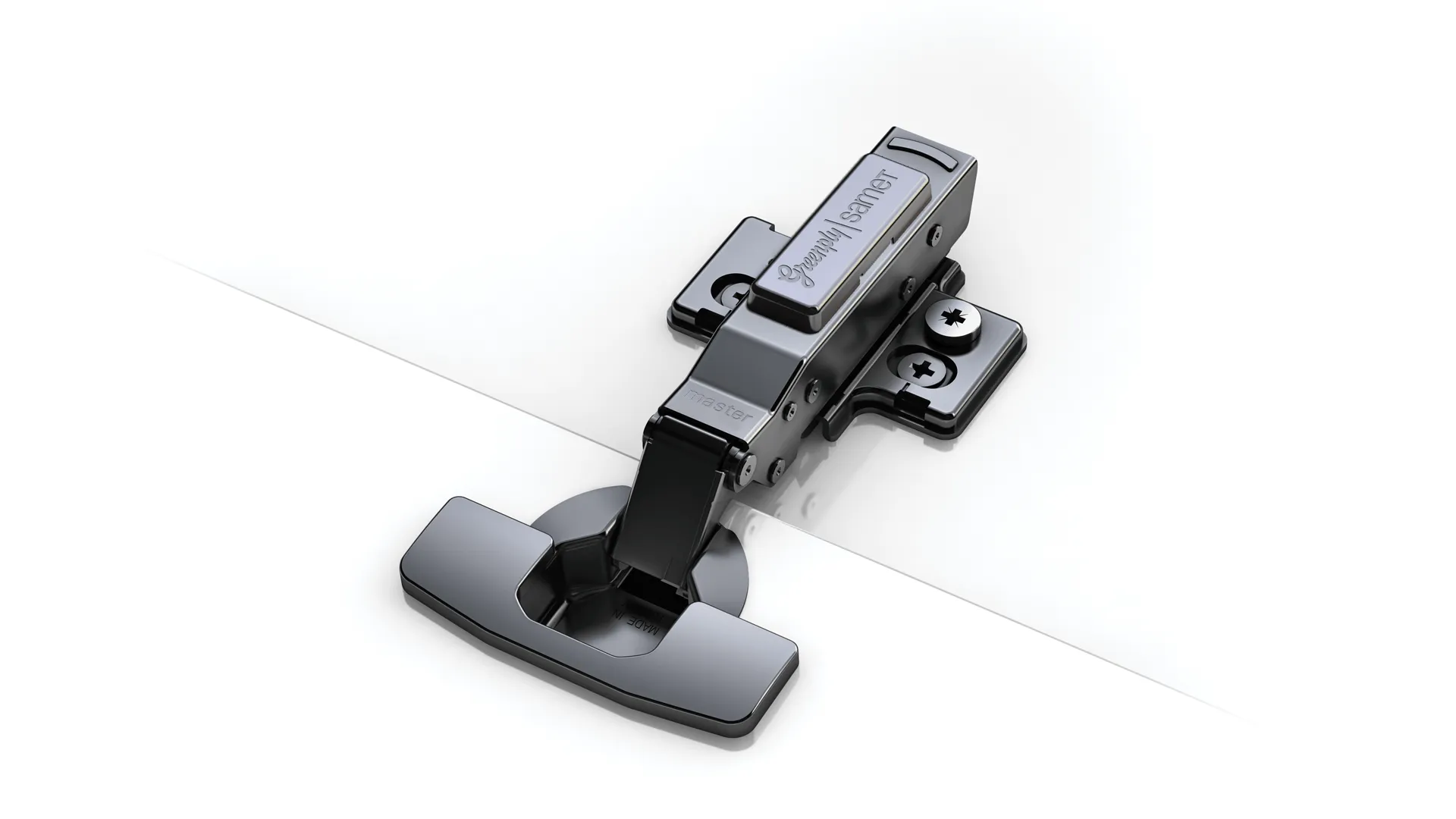

Do you have black colour options for Hinge Models?
Yes, Master Hinge Model has it.
